Brokk 900 Rotoboom
Whether you need power or precision for a cleanout, the Brokk 900 Rotoboom delivers reliable performance every time.
Want our catalog?
The Brokk 900 Rotoboom, the heaviest robot in Brokk’s lineup, offers an incredible 10-meter reach and 360-degree arm rotation. This robot excels in heavy and demanding demolition and maintenance work in the metal processing industry. Equipped with Brokk’s unique heat and impact-protected process breaker, it is perfect for working with hot ladles, converters, runners, and furnaces. Enhanced maneuverability allows for precision work like never before.
Read the press release here
- Specifically designed for tough metal processing applications
- Rotating arm system provide optimal flexibility
- Patented heat-shielded process breaker
- Diesel or electric powered
Features
Brokk unique control system
SmartPower™

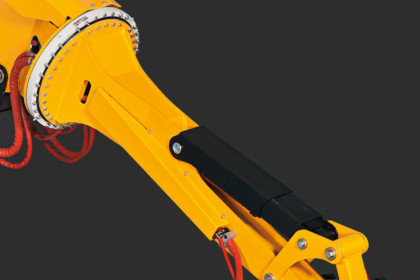

Rotation boom

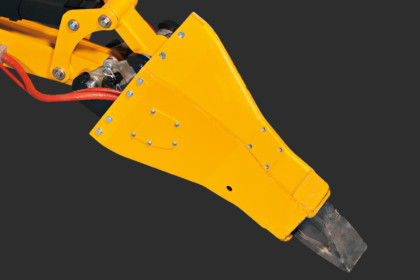

Heat protected breaker
- Hydraulic breaker in illustrations.
Load and stability diagram available on request. - BHB 455
Performance
- Slewing speed
- 16 sec/360°
- Transport speed, max.
- 2.8 km/h; 1.7 mph
- Climbing inclination, max.
- 30°
Hydraulic system
- Hydraulic system capacity
- 230 l; 60.8 US gal
- Pump type
- Variable load-sensing
- System pressure
- 18,5 MPa; 2 683 psi
- Increased pressure to attachment
- 25,0 MPa; 3 626 psi
- Pump flow Diesel/50 Hz el. motor
- 148 l/min; 39 US gal/min
- Pump flow 60 Hz el. motor
- 178 l/min; 47 US gal/min
Power system
- Electric motor type
- ABB
- Power*
- 71 kW
- Recommended fuse size*
- 125 A
- Starting device
- Soft start
Diesel performance
- Type 1
- Kohler Four-cylinder, water-cooled, 4-stroke engine
- Engine
- 55.5 kW; 74 hp diesel EPA Tier 4, EU Stage V
- Engine oil volume
- 15.6 l; 4.1 US gal
- Type 2
- Kubota Four-cylinder,
water-cooled, 4-stroke engine - Engine**
- 55.5 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
- Engine oil volume
- 13.2 l; 3.5 US gal
- Fuel tank capacity
- 80 l; 21 US gal
- Freezing point
- -40°C; -40°F
Control system
- Control type
- SmartRemote™, portable control
- Signal code
- Digital
- Transfer
- Professional radio/Cable
- Range, radio
- Up to 300 m
Weight
- Machine weight***
- 11,600 kg; 25,574 lbs
- Recommended attachment weight
- 600 kg; 1323 lbs
Noise level
- Sound power level LWA**** El:
- 99 dB(A)
- Sound power level LWA**** Diesel:
- 103 dB(A)
- Power
- 55.5 D, 71 E
- Width min.
- 2150 mm; 86.5 in
- Height min.
- 2545 mm; 100,8 in
- Vertical reach (incl. breaker)
- 10,000 mm; 394 in
- Horizontal reach (incl. breaker)
- 9500 mm; 374 in
*Valid for 400 V/50 Hz and 440 V/60 Hz
**Rated power 74 kW: 99.2 hp at 2600 rpm (SAE J1995)
***Excluding options and attachment
****Measured according to directive 2000/14/EC, excl. attachment
