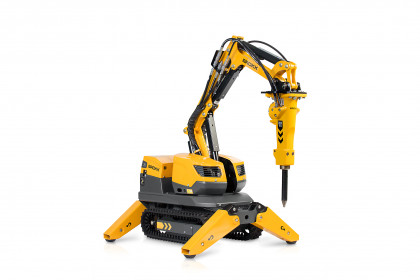

BROKK 70

Maximum power in compact form. A demolition robot that fully replaces the need for manual demolition.

Want our catalog?

The Brokk 70 is the ideal solution for safe and efficient demolition in confined spaces. With a 100% increase in demolition capacity compared to its predecessor, the Brokk 60, this model combines remarkable power, compact size, and lightweight design to perform tasks previously impossible with mechanized demolition. Equipped with SmartPower™ and a smooth hydraulic system, the Brokk 70 delivers immense power in a miniature size, eliminating the need for handheld tools.

Weighs less than 560 kg
9.8 kW Brokk SmartPower™ electrical system
Powered with only 16 A electricity fuse
Extremely compact - gets through the narrowest doorways

Features

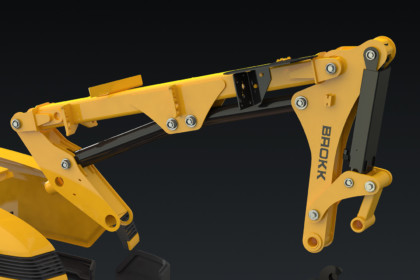

Three part arm system

SmartPower™

Daily maintenance - hoods on

Casted chassie parts

Product sheet

Compare models

Performance

Slewing speed: 6,5 sec/245°
Transport speed, max.: 2.7 km/h; 1.7 mph
Climbing inclination, max.: 30°

Hydraulic system

Hydraulic system capacity: 27 l; 7.1 US gal
Pump type: Variable load-sensing
System pressure: 17 MPa; 2466 psi
Pump flow max. 50Hz and 60Hz: 27 l/min; 7 US gal/min

Power system

Power technology: SmartPower™
Electric motor type: ABB
Power*: 9.8 kW
Recommended fuse size*: 16 A
Starting device: Direct start

Control system

Control type: SmartRemote™, portable
Signal code: Digital
Transfer: Professional radio/Cable
Range, radio: Up to 300 m

Weight

Machine weight**: 560 kg; 1235 lbs
Recommended attachment weight: 105 kg; 231 lbs

Noise level

Sound power level LWA***: 90 dB(A)

Width min.: 597 mm; 23.5 in
Height min.: 880 mm; 34.6 in
Vertical reach (incl. breaker): 3200 mm; 126 in
Horizontal reach (incl. breaker): 2700 mm; 106 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding attachment and extra equipment
***Measured according to directive 2000/14/EC

Technical specs sheet

Compare models

Cylinder protection for cy 2 and cy 3

Suitable for hot environments, act as heat- and impact protection.

Download PDF

Rubber caterpillar tracks

An allround solution with great grip.

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF

Extra hydraulic function

Required for certain tools only.

Download PDF

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF

Compare models

Breakers

Brokk breakers are made for maximising your efficiency. There are breakers for each model, optimizing the power of your specifik Brokk machine. It hits harder and faster then other breakers on the market, still with less noise and vibrations.

Concrete crushers

Our crushers are just as scaringly effective as the look. Provides free rotation and has exchangeable tips. The larger crushers also has additional teeth and pulverizing pads.

Drum cutters

The Brokk drum cutters is ideal for tunneling, special foundation work, demolition, trenching and soil mixing. Suited for noise and vibration sensitive areas. They come complete with mounting kit and valves for flow-control and motor protection.

Buckets

With a bucket on your machine, your Brokk transforms to world’s most agile excavator, perfect for digging, loading, sorting & separation of material and debris.

Clamshell buckets

A variety of clamshell buckets transforms the Brokk to the perfect machine for loading, sorting & separation and transporting material and debris.

Multi Purpose Grapples

Brokk offers a broad range of grapples that helps you do the job more effective. The perfect tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Sorting & demolition grapples

These dedicated grapples are tailor-made tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Cut off saw

Replaces hand-held equipment to cut steel work like door and window frames, conduits for electric cables. Leaves a nice clean cut and does not distort and twist the steel. Saw discs for different materials available.

Compare models

Brokk 70: Related info

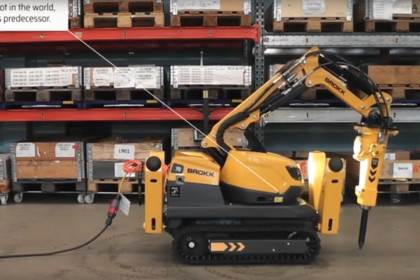

Introducing the new Brokk 70

The new Brokk 70: 100% more power Brokk introduces another new machine at Bauma in Munich. This follows last year’s introduction of four new models and extends the…

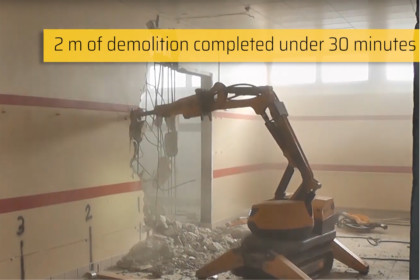

Brokk 70 takes demolition to the next level

Brokk 70, the smallest demolition robot in the world proves it's efficiency by demolishing a reinforced concrete wall in this time lapse video.

Brokk 70 – The mini super hero

Brokk 70 - The mini super hero

Robot Spotlight: the Brokk 70

Powering Up with SmartPower™ The Brokk 70 doesn’t just break walls; it breaks records too! Equipped with Brokk’s cutting-edge SmartPower™ technology, the Brokk 70 transforms the demolition game,…
