Brokk 900
The Brokk 900 will open a whole new world of applications within heavy demolition and
the tunneling industry. Heavy jobs require heavy attachments, that’s the reason why Brokk 900 will be equipped with BHB 1500 which will give you more hitting power than any other demolition robot in the world. A major upgrade from its predecessor, Brokk 800, is that the Brokk 900 is equipped with SmartPower™ for optimized and more reliable runtime for longer periods of time. And with the new robust design, Brokk 900 will be a demolition robot to count on!
- Service friendly and robust design
- Heavy breaker for heavy tasks
- Reliable SmartPower™
- Diesel or electric powered
Caratteristiche
SmartPower™

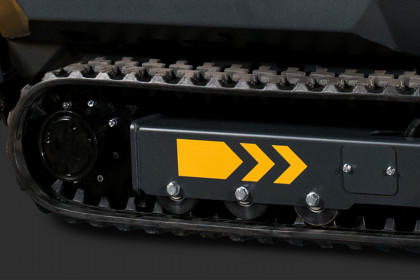

Sistema di cingoli più lungo e forte
Brokk - Sistema di controllo unico
Manutenzione quotidiana
- Hydraulic breaker in illustrations.
Load and stability diagram available on request. - BHB 1500
Performance
- Slewing speed
- 16 sec/360°
- Transport speed, max.
- 2.8 km/h; 1.7 mph
- Climbing inclination, max.
- 30°
Hydraulic system
- Hydraulic system capacity
- 230 l; 60.8 US gal
- Pump type
- Variable load-sensing
- System pressure
- 18.5 MPa; 2683 psi
- Increased pressure to attachment
- 25 MPa; 3626 psi
- Pump flow Diesel/50Hz el. motor
- 148 l/min; 39 US gal/min
- Pump flow 60Hz el. motor
- 178 l/min; 47 US gal/min
Electric motor
- Electric motor type
- ABB
- Power*
- 71 kW
- Recommended fuse size*
- 125 A
- Starting device
- Soft start
Diesel performance
- Type 1
- Kohler Four-cylinder, water-cooled, 4-stroke engine
- Engine
- 55.5 kW; 74 hp diesel EPA Tier 4, EU Stage V
- Engine oil volume
- 15.6 l; 4.1 US gal
- Type 2
- Kubota Four-cylinder, water-cooled, 4-stroke engine
- Engine**
- 55.5 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
- Engine oil volume
- 13.2 l; 3.5 US gal
- Fuel tank capacity
- 80 l; 21 US gal
- Freezing point
- -40°C; -40°F
Control system
- Control type
- SmartRemote™, portable control
- Signal code
- Digital
- Transfer
- Professional radio/Cable
- Range, radio
- Up to 300 m
Weight
- Machine weight***
- 11,400 kg; 25,133 lbs
- Recommended attachment weight
- 1500 kg; 3307 lbs
Noise level
- Sound power level LWA**** El:
- 99 dB(A)
- Sound power level LWA**** Diesel:
- 103 dB(A)
- Potenza
- 55.5 D, 71 E
- Larghezza min.
- 2150 mm; 84.6 in
- Altezza min.
- 2545 mm; 100.2 in
- Portata verticale (incluso martello)
- 9100 mm; 358 in
- Portata orizzontale (incluso martello)
- 8500 mm; 335 in
*Valid for 400 V/50 Hz and 440 V/60 Hz
**Rated power 74 kW: 99.2 hp at 2600 rpm (SAE J1995)
***Excluding options and attachment
****Measured according to directive 2000/14/EC, excl. attachment
